  • Pump, Circulation, Waterway Tiny Might, 1/16hp,230v, 1" x  1"
  • Image 2

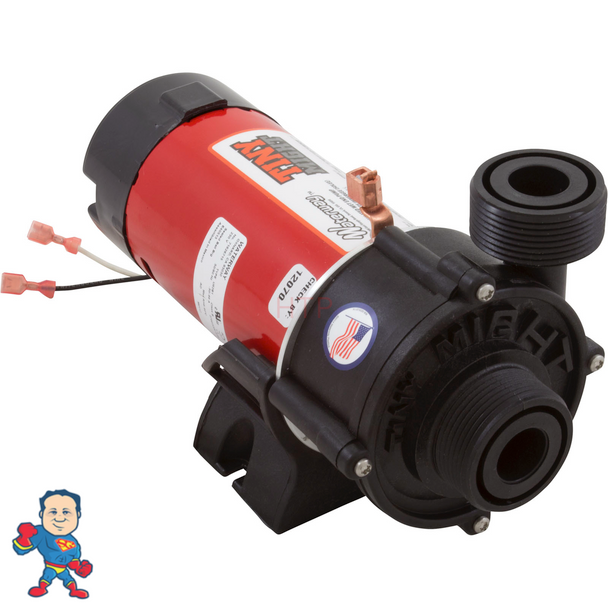

Pump, Circulation, Waterway Tiny Might, 1/16hp,230v, 1" x 1"

RRP: $464.29
Your Price:
$249.99 (You save $214.30)
SKU:
HTP34-270-1020
Shipping:
Calculated at checkout
Quantity:



Product Description

This is a 230V Waterway Tiny Might Circulation Pump that is 1" x 1" which measures about 1 7/8" to the outside of the threads. It is high in efficiency and low on power use. Tiny Might packs a not-so-tiny punch. The Tiny Might offers you a great low flow alternative with high volume. It's quiet, dependable and will maintain your water flow during winter and warmer climates.

We offer this in a 115V verison as well Click here for that version HTP34-270-1000

The Waterway Tiny Might Circulation Pump is high in efficiency and low on power use. Tiny Might packs a not-so-tiny punch. The Tiny Might offers you a great low flow alternative with high volume. It's quiet, dependable and will maintain your water flow during winter and warmer climates.
Spa Pump Features:

  • High volume side discharge efficiency
  • 60% more efficient than similar center discharge pumps
  • Side discharge for optimum flow
  • 1" union or 1" barb
  • Wetend can be rotated for easy installation
  • Large 6-1/2" diameter wet end for higher head pressure
  • Dimensions (H x W x L): 5.9" x 3.4" x 10.1"

The shaft seal for this pump comes in two separate parts. Both are needed to complete a shaft seal replacement.



Complete Pump Type Circulation Pump
Speed 1 Speed (1-Spd)
Motor Voltage 230v
Drain Plug Location None
Pump to Motor Foot Types Footless
Suction Style Center
Suction Connection (Physical Dimension) 1-15/16" od, 3/4" id
Suction Connection Type Male Buttress Thread (mbt), Slip (s)
Suction Pipe Size 1", 1/2"
Discharge Style Side
Discharge Connection (Physical Dimension) 1-15/16" od, 3/4" id
Discharge Connection Type Male Buttress Thread (mbt), Slip (s)
Discharge Pipe Size 1", 1/2"
Horsepower 1/16hp
Motor Amperage/Wattage 0.5A
Manufacturer Waterway
Pump Model Tiny Might
Volute Fastening Type 4 Screws
