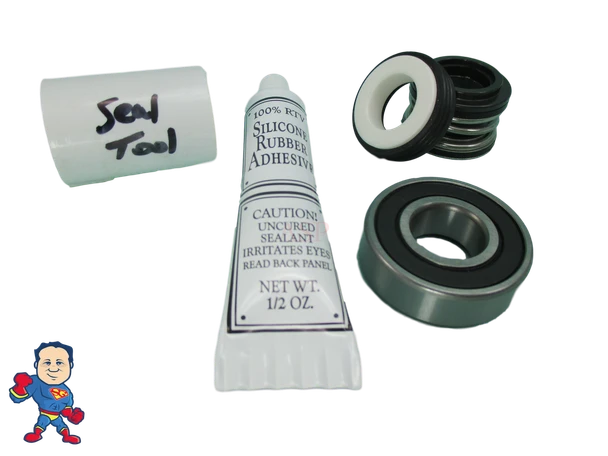

You are buying a Kit that features (1) PS-200 Seal and (1) Bearing that fit most motors that are mated to Aqua-Flo Pump Wet Ends as well as Waterway " Viper" Wet Ends, The Professor silly Juice to seal the seal.This Seal is used in Most Aqua-Flo Wet Ends but is found in others like a Waterway" Viper" Wet End.. look in our store for other seal & bearing kits. It is 1 1/4" Across the back of the Spring Seal part that goes onto the Impeller and the Ceramic & Rubber part that goes into the Volute or Wet End Back is 1 1/4". The Hole in both parts is about 5/8". Note: AquaFlo, Flo-Master, XP,XP2,XP2E, FMHP,FMCP,TMCP, FMVP
To Install you should put silicon sealant on the back of the Metal part and gently push it into place. Also the rubber part can use a light coat of silicon to slide it into place in the impeller.
We offer these alone, with The Professor's Silly Juice or with an Impeller in a kit so look at my eBay store. The bearing are standard fit for most motors with Aqua-Flo Wet ends.
35-423-1020, 35-423-1022, 35-423-1019, Aqua flo, aquaflo,
Visit our eBay Store as we also offer these and other associated products and accessories for your Spa.
Please note: When you have a seal leaking in most cases you will need an impellor because the leak caused water to get into the metal shaft area that the impeller is screwed onto and expands and damages the impellor. The Hot Tub Professor offers How To Installation Videos on Seals and Impellers.
PLEASE NOTE: IF YOU ARE NOT WILLING TO DO YOUR DUE DILIGENCE IN CHOOSING THE CORRECT PART MEANING YOU ARE NOT WILLING TO USE OUR PICTURES AND/OR VIDEOS TO MAKE SURE YOU CHOOSE THE CORRECT PART PLEASE DO NOT BUY FROM US. WE HAVE DONE A LOT OF EXTRA WORK TO HELP YOU ENSURE YOU GET THE CORRECT PART THAT IS WHY I DON'T ACCEPT RETURNS CHOOSE CAREFULLY!!!
*Note: This Seal is Only Found in Waterway "Viper" and EX2 wet ends all other Waterway wet ends use a 1000 seal...
Please put the bearing # 6203 in the part description. I was not sure if it was a 6203 bearing. I think it is wise to replace both front and rear bearing at the same time, so this kit should offer an option to get both bearings and the pump seal. The seal fit perfect.
