6500-261, Pump, Jacuzzi ,Sundance, TheraFlo, Theramax, Piranha, 48FR, 2.5HP, 2SP, 230V

(No reviews yet) Write a Review
SKU:
HTP6500-LHBActionOnly
Shipping:
Calculated at Checkout
  • 6500-261, Complete Pump, Sundance, Jacuzzi , 45 degree , 2.5HP, 230v, 2-spd, 48 frame, 2", 1 or 2 speed, 11.0A NOTE: THIS PUMP WILL NOT FIT ANY OTHER APPLICATION EXCEPT JACUZZI OR SUNDANCE HOT TUBS WITH 45% DEGREE WET ENDS... DO NOT ORDER FOR ANY OTHER APPLICATIONS....
  • 6500-261, Complete Pump, Sundance, Jacuzzi , 45 degree , 2.5HP, 230v, 2-spd, 48 frame, 2", 1 or 2 speed, 11.0A
  • This is the new version Jacuzzi Piranha / Theramax that is now sent and it will include a new cradle

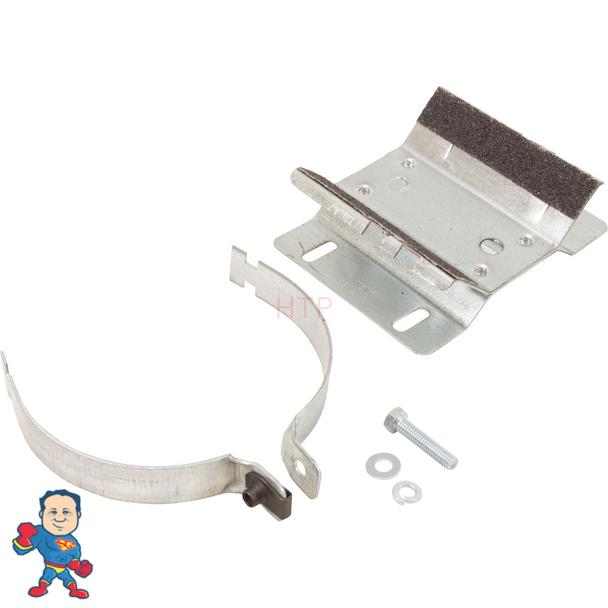

  • Here is the cradle that this motor fits into. The band secures the motor to the base
  • This is the new version Jacuzzi Piranha / Theramax that is now sent and it will include a new cradle
  • This is the new version Jacuzzi Piranha / Theramax that is now sent and it will include a new cradle
  • This is the new version Jacuzzi Piranha / Theramax that is now sent and it will include a new cradle
  • Here is the cradle that this motor fits into. The band secures the motor to the base
  • This is the new version Jacuzzi Piranha / Theramax that is now sent and it will include a new cradle
MSRP: $669.99
$599.95
— You save $70.04

Description

Note: When you order this pump you will receive the newest version of the pump which is a baseless and you will receive the base as well.. This will be able to be installed in any position but you will have to install the base which may not line up with the original mounting position.. It is hit or miss as to how close the base will mount with each tub..But choices are limited


This pump is a 6500-261 Pump, Jacuzzi / Sundance, TheraFlo, 48FR, 2.5HP, 2SP, 230V that measures about 3" across the threads.. The amperage is about 11.0 Amps on high speed and 3.5 Amps on low speed and this pump will work as a one or speed pump.. Note: This Pump will Only Work in Jacuzzi and Sundance Hot Tubs that have 45 Degree Wet Ends.. DO NOT order this pump for any other application as it will not work....

Motor Voltage 230v
Speed 2 Speed (2-Spd)
Motor Amperage/Wattage 11.0A/3.3A
Horsepower 2.5hp
Manufacturer Balboa Water Group
Pump Model TheraMax
Suction Pipe Size 2"
Suction Connection Type Male Buttress Thread (mbt)
Suction Style Center
Discharge Pipe Size 2"
Discharge Connection Type Male Buttress Thread (mbt)
Discharge Style Side
Motor Frame 48 Frame Thru-Bolt
Drain Plug Location 6,9 o`clock
