Wear Ring, Waterway Executive 48 or 56 frame , 1.0, 2.0 or 3.0 HP
- SKU:
- HTP35-270-1817
- Shipping:
- Calculated at Checkout
-

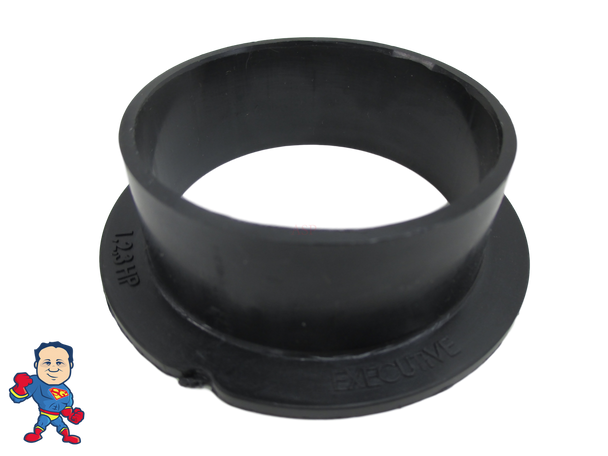

Wear Ring, Waterway Executive 48 or 56 frame , 1.0, 2.0 or 3.0 HP
![Wear Ring, Waterway Executive 48 or 56 frame , 1.0, 2.0 or 3.0 HP]( "Wear Ring, Waterway Executive 48 or 56 frame , 1.0, 2.0 or 3.0 HP")
-
This is an example of where you can find the actual HP rating for the original impeller.. Notice it say 2HP a little off set from the center.. Note: the 1 HP and the 5 HP Impellers do not have a stamp in them . Also these impellers have been redesigned so there are no longer numbers in the center the complete impeller part numbers are stamped in the outside face of the impeller so for a 1HP you will see 1HP: 35-270-1802 2HP: 35-270-1804 3HP: 35-270-1806
![This is an example of where you can find the actual HP rating for the original impeller.. Notice it say 2HP a little off set from the center.. Note: the 1 HP and the 5 HP Impellers do not have a stamp in them . Also these impellers have been redesigned so there are no longer numbers in the center the complete impeller part numbers are stamped in the outside face of the impeller so for a 1HP you will see 1HP: 35-270-1802 2HP: 35-270-1804 3HP: 35-270-1806]( "This is an example of where you can find the actual HP rating for the original impeller.. Notice it say 2HP a little off set from the center.. Note: the 1 HP and the 5 HP Impellers do not have a stamp in them . Also these impellers have been redesigned so there are no longer numbers in the center the complete impeller part numbers are stamped in the outside face of the impeller so for a 1HP you will see 1HP: 35-270-1802 2HP: 35-270-1804 3HP: 35-270-1806")
-
Wear Ring, Waterway Executive 48 or 56 frame , 1.0, 2.0 or 3.0 HP example of where the wear ring goes as opposed to the impeller and face..
![Wear Ring, Waterway Executive 48 or 56 frame , 1.0, 2.0 or 3.0 HP
example of where the wear ring goes as opposed to the impeller and face..]( "Wear Ring, Waterway Executive 48 or 56 frame , 1.0, 2.0 or 3.0 HP
example of where the wear ring goes as opposed to the impeller and face..")
-
This is an example of this wear ring on the an impeller the impeller is sold separately...
![This is an example of this wear ring on the an impeller the impeller is sold separately...]( "This is an example of this wear ring on the an impeller the impeller is sold separately...")
-
Wear Ring, Waterway Executive 48 or 56 frame , 1.0, 2.0 or 3.0 HP
![Wear Ring, Waterway Executive 48 or 56 frame , 1.0, 2.0 or 3.0 HP]( "Wear Ring, Waterway Executive 48 or 56 frame , 1.0, 2.0 or 3.0 HP")
-
Wear Ring, Waterway Executive 48 or 56 frame , 1.0, 2.0 or 3.0 HP
![Wear Ring, Waterway Executive 48 or 56 frame , 1.0, 2.0 or 3.0 HP]( "Wear Ring, Waterway Executive 48 or 56 frame , 1.0, 2.0 or 3.0 HP")
-
Wear Ring, Waterway Executive 48 or 56 frame , 1.0, 2.0 or 3.0 HP
![Wear Ring, Waterway Executive 48 or 56 frame , 1.0, 2.0 or 3.0 HP]( "Wear Ring, Waterway Executive 48 or 56 frame , 1.0, 2.0 or 3.0 HP")
-
Wear Ring, Waterway Executive 48 or 56 frame , 1.0, 2.0 or 3.0 HP
Description
This Wear Ring only fits Waterway Executive 1, 2, or 3HP Impellers for a 48 or 56 Frame Pump Wet Ends and measures 1-1/16" thick from front to back... If you have a Waterway Executive 4 or 5 Horsepower Wet End it will require a different wear ring that is thinner click here for that Wear Ring which measures 13/16" front to back and can be found here... 4-5 HP Executive Wear Ring
Click the links below for the internal parts related to Executive Wet Ends Related to the above listings..
Water Slinger,WW Hi-Flo/Mustang/Executive
Wear Ring, Waterway Executive 48 or 56 frame , 1.0, 2.0 or 3.0 HP
Impeller, Waterway Executive 48/56fr, 1.0hp, How To Videos
Impeller, Waterway Executive 48/56fr, 2.0hp, How To Video
Impeller Waterway Executive 48/56fr 3.0 HP How To Video
Wear Ring, Waterway Executive 48 or 56 frame, 4.0 or 5.0 HP
Impeller Waterway Executive 48/56fr 4.0hp 4HP How To Video
Impeller, Waterway Executive 48/56fr, 5.0hp, How To Video
Seal 1000 Spa Hot Tub Pump Wet End Seal Part fits Waterway Pumps How To Video
Seal 1000 Silicon Spa Hot Tub Pump Wet End Seal Part Waterway Pumps How To Video
(1) Bearing & 1000 Seal Pump Parts Kit Waterway Spa Hot Tub Pumps How To Video
(2) Bearing & 1000 Seal Pump Parts Kit Waterway Spa Hot Tub Pumps How To Video
For Complete Wet Ends Click Here to go to That Category:
Executive Series Wet Ends Waterway
