Retrofit MODPACK 202 Low Flow Control Pack, (2) Pump, Blower, Circ Pump, Ozone and 5.5kW, 230v

(No reviews yet) Write a Review
SKU:
HTPUnimodpack2000LOWFlow
Shipping:
Free Shipping
  • Retrofit MODPACK 202 Low Flow Control Pack, (2) Pump, Blower, Circ Pump, Ozone and 5.5kW, 230v
  • Retrofit MODPACK 202 Low Flow Control Pack, (2) Pump, Blower, Circ Pump, Ozone and 5.5kW, 230v
  • Retrofit MODPACK 202 Low Flow Control Pack Inside
  • Retrofit MODPACK 202 Low Flow Control Pack Hight
  • Retrofit MODPACK 202 Low Flow Control Pack Mounting Foot Measurement
  • Retrofit MODPACK 202 Low Flow Control Pack Height
  • Retrofit MODPACK 202 Low Flow Control Pack Width Minus Heater

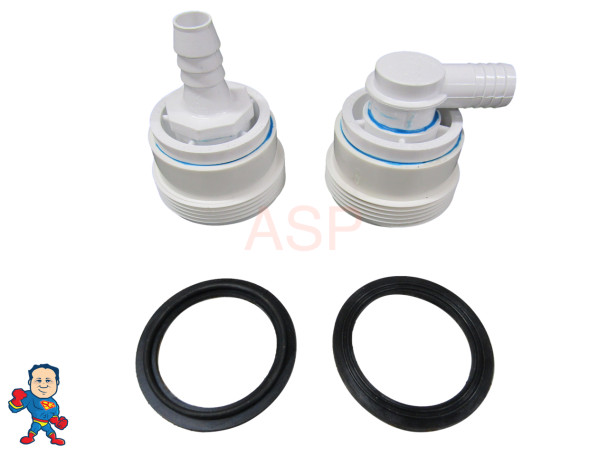

  • Barb adapters included for hook to your low flow circulation pump
  • Retrofit MODPACK 202 Low Flow Control Pack Heater ID Measurement
  • Retrofit MODPACK 202 Low Flow Topside Control Width
  • Retrofit MODPACK 202 Low Flow Topside Control Height
  • Retrofit MODPACK 202 Low Flow Topside Control Underside
  • Retrofit MODPACK 202 Low Flow Topside Control Underside 2
  • Retrofit MODPACK 202 Low Flow Topside Control Receptacles
  • Retrofit MODPACK 202 Low Flow Topside Control Receptacles 2
  • Retrofit MODPACK 202 Low Flow Topside Control Terminal Block
  • Retrofit MODPACK 202 Low Flow Topside Control Terminal Block 2
  • Retrofit MODPACK 202 Low Flow Topside Control Fuse Protected Circuits
MSRP: $1,096.77
$759.99
— You save $336.78

Description

The MODPACK 202 Low Flow is a universal Low Flow replacement spa control system for (1)Circluation Pump (2) Jet Pumps and Blower System and 12V light. Heater assembly is 15″ long with a 3/4" Barb Connection kit, it is mounted inside of the enclosure.

This pack is designed to run either (1) Pump, (2) Pumps or (2) pumps and (1) Blower, Circ Pump, a Light and an ozonator as well. Each component can be wired 115v or 230V and it comes with a new cable for both pumps, a light and an ozonator.. The topside is 7 1/4" x 3 1/4" on the face and the hole size for the topside would be about 6 3/8" x 2 3/8".. If the hole you are trying to use the topside is is larger than this we offer blackout plates to take up the space..

 If you need a blackout plate click here.. ACC / Modpack Topside Adapter Plate for the KP2020, KP2010, KP2005

If you need your ModPack to run Fiber Optic add this option.. Retrofit MODPACK Fiber Optic Option This is in Addition to a New Modpack purchase

  • Pump One circuit, two speeds, 220V, 12A Max
  • Pump Two circuit, up to 2 speeds (When activated), 220V, 12A Max
  • Blower circuit, 110/220V, 7A Max
  • Circ Pump circuit, 110/220V, 4A Max (24Hr when activated, Requires 25 GPM)
  • Ozone circuit, 110/220V, 1A Max
  • 12V 12W Light circuit
  • 1.4/5.5KW, 120/240V Flo-Thru heater
  • 48-inch amp motor, blower, and ozone cords
  • Topside Panel Included
  • UL and ETL Listed
  • Freeze protection
  • High-limit protection
  • Filtration mode
  • Economy Mode
