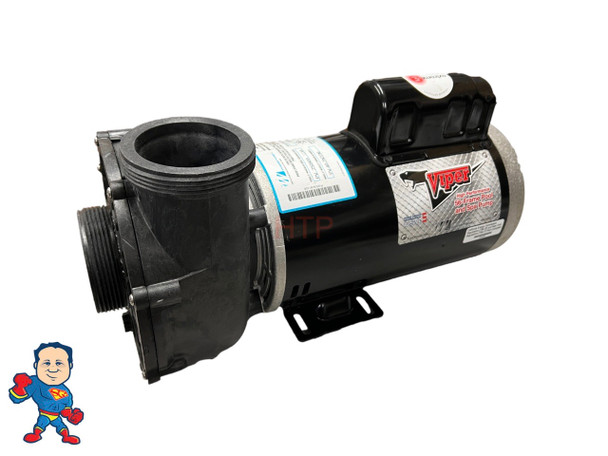

Pump, Waterway Viper, 5.0hp, 230v, 2-spd, 56fr, 2-1/2" x 2-1/2"", OEM

(No reviews yet) Write a Review
SKU:
HTP34-270-3510N
Shipping:
Calculated at Checkout
  • Pump, Waterway Viper, 5.0hp, 230v, 2-spd, 56fr, 2-1/2" x 2-1/2"", OEM The measurement from the edge of the thread to the edge of the thread on the Suction and Pressure side is 3 11/16"..
  • Pump, Waterway Viper, 5.0hp, 230v, 2-spd, 56fr, 2-1/2" x 2-1/2"", OEM
  • Pump, Waterway Viper, 5.0hp, 230v, 2-spd, 56fr, 2-1/2" x 2-1/2"", OEM The measurement from the edge of the thread to the edge of the thread on the Suction and Pressure side is 3 11/16"..
  • When wiring this motor you would put the white wire on the (C) for Common and the Red on (H) for high speed and the black on (L) for Low Speed... The Red is High and the Black is Low in most applications but check your wiring before removing from the old motor..
  • Pump, Waterway Viper, 5.0hp, 230v, 2-spd, 56fr, 2-1/2" x 2-1/2"", OEM
  • Pump, Waterway Viper, 5.0hp, 230v, 2-spd, 56fr, 2-1/2" x 2-1/2"", OEM The measurement from the edge of the thread to the edge of the thread on the Suction and Pressure side is 3 11/16"..
MSRP: $689.99
$539.99
— You save $150.00

Description

This pump is a rated 5HP Viper 2 1/2" x 2 1/2" 56 Frame Spa Pump... The measurement from the edge of the thread to the edge of the thread on the Suction and Pressure side is 3 11/16"..  It is an unusual pump not found in most hot tubs.. It is in some brands like Coast and some others and found in many Swim Spas.. It has a Viper wet end designed for 56-Frame motors along with two double-shielded ball bearings with moisture-resistant grease for quieter operation and long life. The dual speed motors have insulated windings for increased efficiency and large, highly versatile 6-1/2" diameter wet end for higher head pressure. A split capacitor (start and run) allows for less energy consumption.

Spa Pump Features:

  • Viper wet end designed specifically for 56-frame motors
  • Two double shielded ball bearings with moisture resistant grease for quieter operation and longer life
  • Two speed motors have four sets of insulated windings for increased efficiency
  • 56-frame motor for added strength, cooler operating temperature, and longer motor life
  • Large 2-1/2" intake for improved flow performance and reduced noise
  • Large 8" diameter wet end for increased volume capacity
  • Split capacitor, (start and run) for less energy consumption
  • Thermally protected to extend life expectancy of motor
  • Highly versatile wet end can be rotated every 90 degrees
  • Dimensions (H x W x L): 9.08" x 8.05" x 15.72"

  • California Title 20 Compliant
Complete Pump Type Portable Spa Pump
Speed 2 Speed (2-Spd)
Motor Voltage 230v
Drain Plug Location 3,4,6,9 o`clock
Pump to Motor Foot Types 1
Suction Style Center
Suction Connection (Physical Dimension) 3-11/16"od
Suction Connection Type Male Buttress Thread (mbt)
Suction Pipe Size 2-1/2"
Discharge Style Side
Discharge Connection (Physical Dimension) 3-11/16"od
Discharge Connection Type Male Buttress Thread (mbt)
Discharge Pipe Size 2-1/2"
Horsepower 4.0hp
Motor Frame 56 Frame Thru-Bolt
Motor Amperage/Wattage 16.4A/4.8A
Manufacturer Waterway
Pump Model Viper
Manufacturer Impeller Number Click here for the Impeller that fits this p
Volute Fastening Type 8 Screws
Face Plate Number Click Here for the Face Plate that fits this pump
Manufacturer Wet End Number Click here for the wet end that fits this pump
