NLA Control, Balboa, EL2001M3, P1 (2) , P2 (2) , Blower or Pump 3, 4kW, 115v/230v

(No reviews yet) Write a Review
SKU:
HTP58-138-32EK
Shipping:
Calculated at Checkout
  • Control, Balboa, EL2001M3, P1 (2) , P2 (2) , Blower or Pump 3, 4kW, 115v/230v
  • Control, Balboa, EL2001M3, P1 (2) , P2 (2) , Blower or Pump 3, 4kW, 115v/230v
  • Control, Balboa, EL2001M3, P1 (2) , P2 (2) , Blower or Pump 3, 4kW, 115v/230v
  • Control, Balboa, EL2001M3, P1 (2) , P2 (2) , Blower or Pump 3, 4kW, 115v/230v
MSRP: $774.99
$574.99
— You save $200.00

Out of stock

Description

Balboa no longer makes this spa pack. Here are two Retro-Fit options:

Balboa BP2000 Retro-Fit Kit With TP700 Topside Control Panel

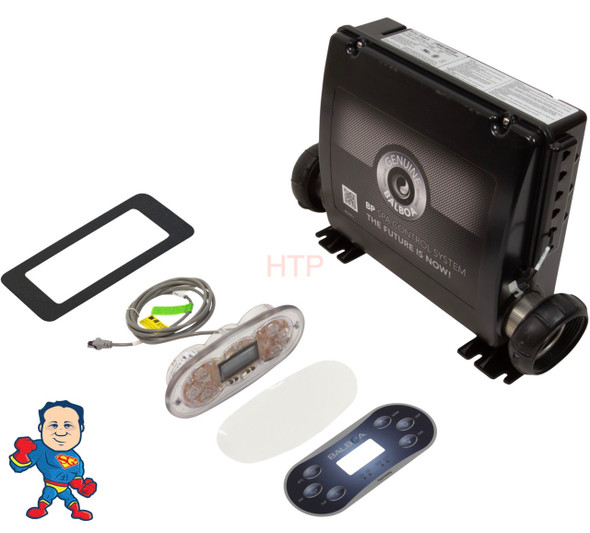

Control Retrofit Kit Balboa BP7, 2 Pump, Pump 3/Blower ,Ozone ,Light, 5.5kW, 115v/230v, with TP600 Topside



Balboa EL2001M3 Spa pack control system with 4.0kW Heater

The Elite Series (EL) family of hot tub control systems were designed using Balboa's patented M7® temperature and water flow sensing technology and a new universal control platform. These features increase the reliability, ease of installation and serviceability of the control.

The systems have a plastic enclosure to eliminate water intrusion. Connectors are built on to the circuit board minimizing wires and simplifying service.

FEATURES:

  • State of the art design
  • Supports Balboa ML Panels
  • Multi-level diagnostic capabilities
  • M7® flow and temperature sensors
  • All models feature convertible component outputs that can be wired for 120 or 240 volts

Please Note: Circuit Boards and spa packs are a final sale and cannot be returned

Number Of Appliances 3
Manufacturer Balboa Water Group
Model EL2001M3
Supply Voltage 230v - 4 Wire
Heater Type Fixed - Bottom
Heater Wattage 4.0kW
Topside Included None
Circ Pump Ready Yes 115v/230v
Auxiliary Topside Ready Yes
Fiber Optic Yes
Accessory Ready No
Wi-Fi Compatible No
50/60 HZ 60Hz
