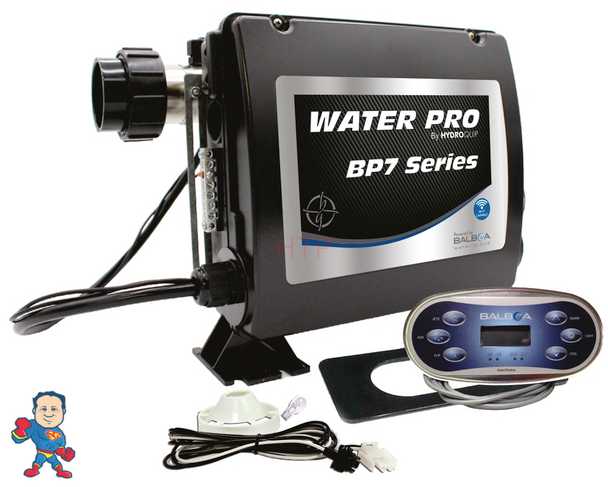

Hydro-Quip Water Pro Series, Powered by Balboa BP7 w/ 5.5 KW Hydro-Quip Slide Heater and TP600 Topside

HydroQuip Water Pro retro-fit control system with 5.5 KW, 15" slide heater. This innovative Balboa BP7 powered system has a heater that can slide up and down the back of the box or can be detached to meet various plumbing setups making retro-fits a breeze. The unions on this slide heater are considered 2" and measure 3" on the inside. The heater can also be mounted remotely from the control, up to 3 feet away.

This next generation feature rich WaterPro BP7 based control system comes with a 5.5KW slide heater bundled with the sleek oval shaped 6 button TP600 topside control with large easy to read backlit LCD screen and simple to follow menus.

Kit includes: The Control System, Topside Control Panel, Topside Adapter Plate, 12 Volt Light Cord

If you want the Wifi Connect Kit that works with this control system click here: Balboa, Wifi Module Kit, Platinum BP Series

 HydroQuip Water ProBP7 System Specifications:

• 230 volts 60HZ only
• 5.5KW slide heater, 15", 2" unions
• Can operate: Pump 1 - 1 or 2 speeds (Default setting 2 speed, can be changed), Pump 2 - 1 or 2 speed, Dedicated circulation pump (min 20 GPM and min 1.5" plumbing required), Blower or Pump 3 - single speed, Ozonator, 12 Volt Light, Hot Plug (stereo converter and accessories)

• M8 Patented Sensor heater technology
• Wifi: Compatible with Balboa ControlMySpa WiFi (Sold Separately)
• Balboa Bluetooth Audio compatible, module 59089 sold separately
• Spa light control 1 Amp max
• 50 Amp GFCI required if running more than 1 pump
• Balboa Spa pack BP7 (5.5KW Heater)
• TP600 topside control Face size 7-1/8" x 3-1/2"
• Adapter plate (Bezel) 9" x 4"
• Cord for light, 10' long
• Balboa BP7 programming manual

Control Box Dimensions

Important:
This is a retrofit bundle that can replace other control systems and installation by a qualified person is recommended.
