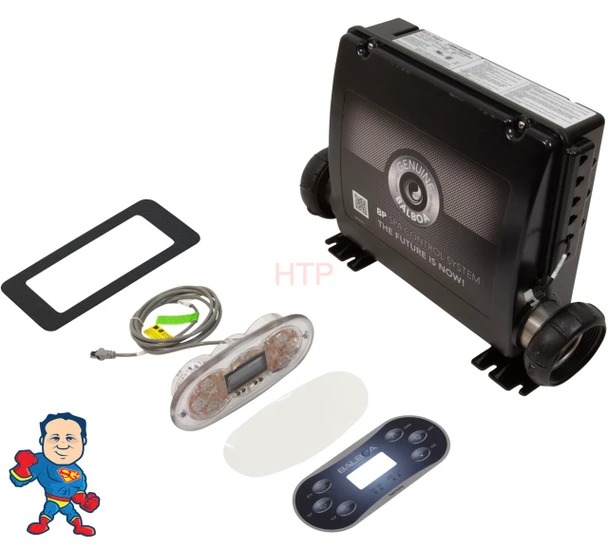

Control Retrofit Kit Balboa BP7, 2 Pump, Pump 3/Blower ,Ozone ,Light, 5.5kW, 115v/230v, with TP600 Topside

The next generation feature rich Balboa BP7 control system with a 5.5KW heater bundled with the sleek rounded rectangle shaped 6 button TP600 topside control with large easy to read backlit LCD screen and simple to follow menus.

Kit includes: system, panel, panel adapter plate, light cord and overlay(s) and Component Cords..

If you want the Wifi Connect Kit that works with this control system click here: Balboa, Wifi Module Kit, Platinum BP Series

 BP7 System Specifications:

• 230 volts 60HZ only, cannot run on 120 volts
• 5.5KW heater
• Can operate: Pump 1 - 1 or 2 speeds (Default setting 2 speed, can be changed), Pump 2 - 1 or 2 speed, Dedicated circulation pump (min 20 GPM and min 1.5" plumbing required), Blower or Pump 3 - single speed, Ozonator, 12 Volt Light, Hot Plug (stereo converter and accessories)


• M7 Patented Sensor heater technology
• Wifi: Compatible with Balboa ControlMySpa WiFi (Sold Separately)
• Balboa Bluetooth Audio compatible, module 59089 sold separately
• Spa light control 1 Amp max
• 50 Amp GFCI required if running more than 1 pump

 When checking out in the comments box tell us what you are running with the system and we will send the conversion cords needed to retrofit your system..

 How many Pumps, Blower, Light, Ozone and Circulation Parts..

• Balboa Spa pack BP7 (5.5KW Heater)
• TP500 topside control Face size 6.32" x 2.25", (Hole size 5.77" x 1.65")
• Adaptor plate (Bezel) 9" x 4"
• Cord for light, 10' long
• Balboa BP7 programming manual

Control Box Dimensions

Important.
This is a retrofit bundle that can replace other control systems and installation by a qualified person is recommended.
