Barbed Bleeder Plug WUA Intertek LX 48 or 56 Frame Wet End Fine Threads

(No reviews yet) Write a Review
SKU:
HTPBARBPLUG-56WUA4856FINERegular
Shipping:
Calculated at Checkout
  • Barbed Bleeder Plug WUA Intertek LX 48 or 56 Frame Wet End Fine Threads
  • If your Pump Bleeder looks like the one on the left then you need the fine threaded Bleeder Barb if it looks like the one on the right you need the coarse thread Bleeder Barb.. Note: Only Bleeder Barb is Included in this listing..
  • If your Pump Bleeder looks like the one on the left then this is the correct Bleeder Barb.. Note: Only Bleeder Barb is Included in this listing..
  • Barbed Bleeder Plug WUA Intertek LX 48 or 56 Frame Wet End Fine Threads
  • Barbed Bleeder Plug WUA Intertek LX 48 or 56 Frame Wet End Fine Threads
  • Compare your screws to be sure that this is the correct wet end brand before you choose this face.
  • Compare your wet end to this picture to be sure that this is the correct wet end before choosing this Bleeder Plug..

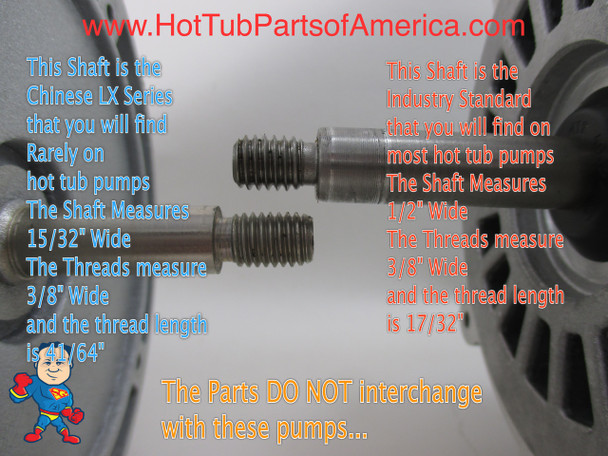

  • Compare your motor shaft to these to be sure you are working on the correct wet end before ordering this Bleeder Plug
  • If your Pump Bleeder looks like the one on the left then this is the correct Bleeder Barb.. Note: Only Bleeder Barb is Included in this listing..
  • Barbed Bleeder Plug WUA Intertek LX 48 or 56 Frame Wet End Fine Threads
  • Barbed Bleeder Plug WUA Intertek LX 48 or 56 Frame Wet End Fine Threads
MSRP: $12.99
$9.99
— You save $3.00

Description

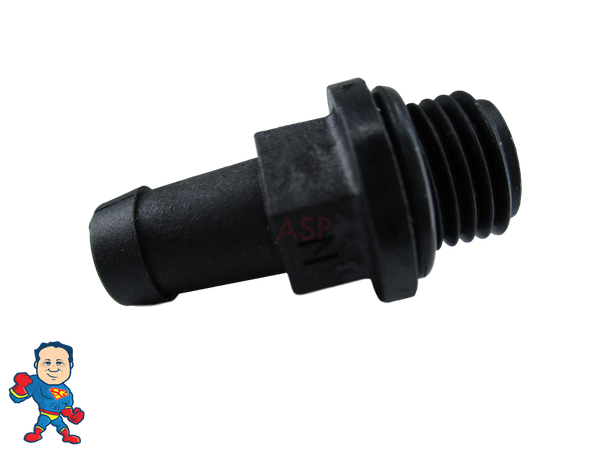

This Part is a Barbed Bleeder Barb with O-Ring that fits New Style 48 or 56 Frame WUA Intertek LX Brand Pump Wet End that uses a fine thread bleeder plug.. Watch the video for instruction on how to install this part and also how to determine if this is the correct part. It is about 1 1/2" end to end, it measures about 1/2" wide across the threads, it also measures about 3/8" on the barbed end and receives a 3/8" ID tube....

NOTE: This Wet End's parts looks a lot like an Aqua-Flo and a CMP Wet End but they do not interchange!

For a Coarse Threaded Bleeder Barb Click this Link: Coarse Threaded Barb

NOTE: This Part will Fit Sundance® or Jacuzzi® Tubs with a Guangdong LX Wet End with fine threads...  click here for  Jacuzzi® & Sundance® LX Parts

 Note: We offer parts for this wet end and complete pumps in our store.


Barb Fitting Type Barb Adapter
Barb Size 3/8"
Barb Type Barb (b)
Plumbing Connection Size 1/4"
Plumbing Connection Type Male Pipe Thread (mpt)
Manufacturer Intertek LX
