Balboa BP2000 Retro-Fit Kit With TP700 Topside Control Panel
- SKU:
- SPN50-BPLE-7EE-55-K
- Shipping:
- Free Shipping
-
Balboa BP2000 Retro-Fit Kit With TP700 Topside Control Panel
-
Balboa BP2000 Retro-Fit Kit With TP700 Topside Control Panel
-
Balboa BP2000 Retro-Fit Kit With TP700 Topside Control Panel
-

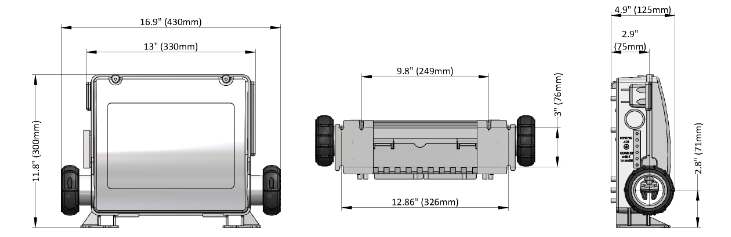

Balboa BP2000 Retro-Fit Kit With TP700 Topside Control Panel - Dimensions
-
Balboa BP2000 Retro-Fit Kit With TP700 Topside Control Panel
-
Balboa BP2000 Retro-Fit Kit With TP700 Topside Control Panel - Front
-
Balboa BP2000 Retro-Fit Kit With TP700 Topside Control Panel - Rear
-
Balboa BP2000 Retro-Fit Kit With TP700 Topside Control Panel
-
Balboa BP2000 Retro-Fit Kit With TP700 Topside Control Panel - Adapter Plate
-
Balboa BP2000 Retro-Fit Kit With TP700 Topside Control Panel - Light Cable
Description
Balboa BP2000 retro-fit control system with TP700 Color LCD topside control panel. This high BP2000 system is Balboas top of the line unit offerring multiple pump support and feature rich setting for filtration, purge times and much more. This advanced system uses Balboas M8 technology to detect not only temperature but also water flow. These sensors also allow for installation of this unit on the section or discharge of the pump.
This system supports up to 3 pumps, air blower, ozonator, 12 volt light, blower and optional circulation pump. Pump 4 support is available via a splitter when plugged into the pump # 2 circuit and with that circuit set as a two speed. The draw back to pump 4 is that you can only run either pump 2 or pump 4 at one time. Wifi Module compatible
Includes the spa pack with 15" 5.5 KW heater, digital TP700 with 10 button topside control panel, adapter plate and light harness.
The TP700 has an outside dimension of 10" x 3-1/2" and requires a cutout size of 8.85" x 2.36"
If you already have AMP power cords and a Balboa system you should be able to reuse your cords. If not see our cord selections in the drop down boxes.
If you would like to add WiFi so you control your tub via an Android or Apple app click here: Balboa, Wifi Module Kit, Platinum BP Series
If you need a splitter to hook up a 4th pump to the pump 2 circuit clickc here: Balboa BP "Y" Splitter, Pump 2 and Pump 4
Number Of Appliances | 4 |
Manufacturer | Balboa Water Group |
Model | BP2000 |
Supply Voltage | 230v - 3 Wire, 230v - 4 Wire |
Heater Type | Fixed - Bottom |
Heater Wattage | 5.5 KW, 15", 2" unions (3" thread ID) |
Topside Included | TP700 |
Circ Pump Ready | Optional 115v/230v |
Auxiliary Topside Ready | Yes |
Fiber Optic | No |
Accessory Ready | Yes |
Wi-Fi Compatible | Yes |
50/60 HZ | 50Hz, 60Hz |
