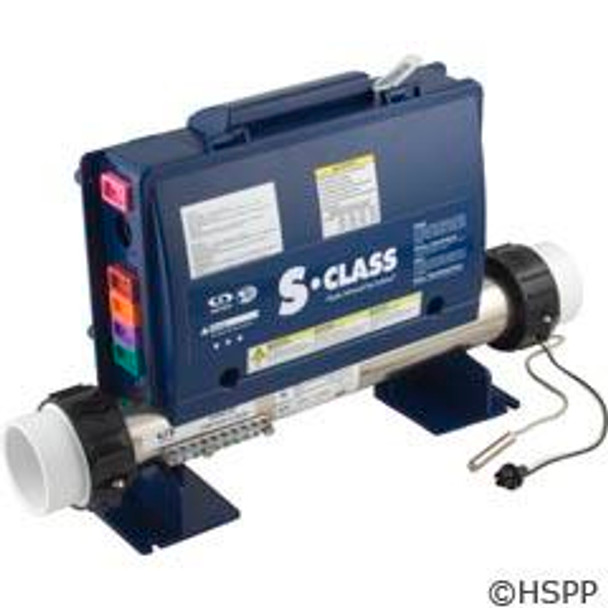

Ctrl,Gecko S-Class,P1,P2,Bl,Cp,Oz,L,115v/230v,Mini Mold,TSC8

Dimensions of control system:
Heater: 2Ó x 15Ó
Box Height 11-1/2Ó
Box length 14-1/4Ó
Box Width 3-3/8Ó
The S-class series of spa controls presents versatility and compact size all in one package. Among its many features:

• Automatic time-out on all outputs
• Sensor failure detection
• Ozone management
• Programmable filter cycles
• High-limit protection
• Pressure switch failure detection
• Current limiting option
• Smart Winter Mode
• Temp. accuracy within ± 1¡F
• Filter cycle overtemp protection

This S-Class control box only contains circuits fitted with Amp style receptacles that will operate the following equipment:

• Pump, 1-spd or 2-spd, 120/240v
• Pump, 1-spd, 120/240v
• Blower 120/240v
• Ozone, 120/240v
• Light 12v
